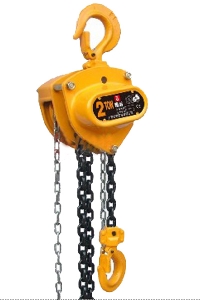

HS-CB Chain Block Parameters:
| Model | HS-CB | |||||||||
| Capacity (ton) | 0.25 | 0.5 | 1 | 1.5 | 2 | 3 | 5 | 7.5 | 10 | |
| Standard lifting height (m) | 2.5 | 2.5 | 2.5 | 2.5 | 2.5 | 3 | 3 | 3 | 3 | |
| Running Test Load (ton) | 0.3125 | 0.625 | 1.25 | 1.875 | 2.5 | 3.75 | 6.25 | 9.375 | 12.5 | |
| Headroon H (mm) | 280 | 345 | 376 | 442 | 470 | 548 | 688 | 765 | 765 | |
| Load Chain Dia.(mm) | Columns | 1 | 1 | 1 | 1 | 1 | 1 | 2 | 3 | 4 |
| Dia+Pitch | 4×12 | 5×15 | 6×18 | 7×21 | 8×24 | 10×28 | 9×27 | 9×27 | 9×27 | |
| Effort to required to lifi max.load (N) | 226 | 235 | 245 | 255 | 324 | 363 | 353 | 373 | 380 | |
| Dimension (mm) | A | 121 | 148 | 172 | 196 | 210 | 255 | 280 | 433 | 463 |
| B | 114 | 132 | 151 | 173 | 175 | 205 | 189 | 189 | 189 | |
| C | 24 | 25 | 30 | 33 | 35 | 40 | 42 | 56 | 56 | |
| D | 31 | 31.5 | 37.5 | 42.5 | 45 | 50 | 53 | 85 | 85 | |
| Net Weight (kg) | 6.5 | 9.3 | 12.2 | 16.5 | 19.5 | 32 | 41.1 | 61.6 | 75.7 | |
| Paching Measurements (lxwxh) (mm) | 23×16×15 | 30×17×18 | 32×18×19 | 37×20×24 | 37×20×24 | 43×40×30 | 47×44×35.5 | 62×47×39.5 | 53×51×46.5 | |
| Extra Weight per meter of extre lift (kg) | 0.81 | 1 | 1.29 | 1.61 | 1.92 | 2.68 | 4.1 | 6.86H | 7.73 | |
