直径
SIZE |

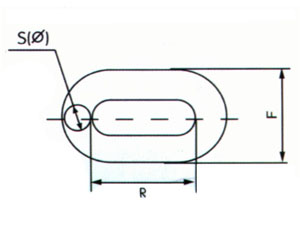

链环尺寸 LINK SPECIFICATION
|
工作负荷
WORK LIMITED LOAD |
环/米
LINKS PER M |
米/100KG
LENGTH PER 100KG |
|||
|
链径S
DIAMETER |
内长R
INSIDE LENGTH |
外宽F
OUTSIDE WIDTH |
B.F.
（黑漆） |
H.D.G.
（热镀锌） |
|||
|
MM
|
MM
|
MM
|
MM
|
MT
|
PC
|
M
|
M
|
|
6
|
6.3
|
26.1
|
23.5
|
0.32
|
37.8
|
129.0
|
120.0
|
|
8
|
8.0
|
32.2
|
29.5
|
0.53
|
31.0
|
77.8
|
74.1
|
|
10
|
10.0
|
39.1
|
36.2
|
0.83
|
25.0
|
48.5
|
47.1
|
|
12
|
12.0
|
46.0
|
44.0
|
1.35
|
21.7
|
34.0
|
33.3
|
|
13
|
13.0
|
49.1
|
46.1
|
1.50
|
20.3
|
29.7
|
27.7
|
|
16
|
16.0
|
59.6
|
56.5
|
2.31
|
16.8
|
20.2
|
18.2
|
|
20
|
20.00
|
73.3
|
70.0
|
3.67
|
13.6
|
12.3
|
11.6
|
|
24
|
24.00
|
87.0
|
83.6
|
5.31
|
11.5
|
8.50
|
8.04
|
