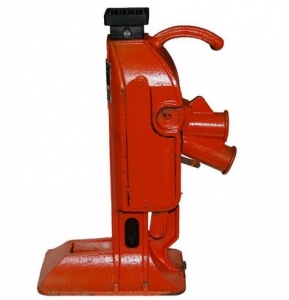

Mechanical track jack is the simplest & sturdiest types of the jacks, widely used in Oil Fields, Railway Track Work, Ship Yards, Mining Operation, Construction &Heavy Duty Industrial Maintenance & Establishments. Tese Track jacks can be used to lifting both on down and up strockes. They also can be lowered tooth by tooth, and also can be made to tripped off by just moving the trip control. The track jack has simple structure, easily touse safe and reliable. It can be used with many same jacks. It is a good tool used widefly in many lifting fields
Main parameter:
Loading capacity: 15t
Lifting distance: 280mm
Rock back and forth distance: 16mm
Original height of the claw: 50mm
Crowbar length: 1.5m
Full loading lifting force: 1700N
Full loading quick down force: 500N
Closed height: 530mm
Weight: 25kg
