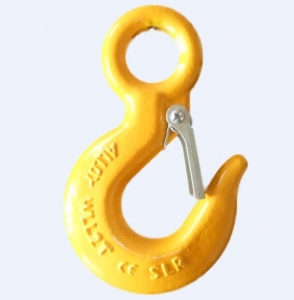

320A & 320C Eye Hoist Hook with CE Certification
*Materials: Alloy steel, Carbon steel
*Surface treatment: Color-spraying, self-color, zinc plated
*Process: Drop forged, heat treated
*Special specifications and marks can be made according to customer's requirement
*Packing: Plastic bags and cartons on pallets
* Design Factor 5 Proof tested and certified.
| Load(T) | A | B | C | D | E | K | L | Unit weight(kg/pc) | |
|
320C Carbon steel 45# |
320A Alloy Steel | ||||||||
| 0.75 | 1 | 24.5 | 23 | 19 | 19 | 9 | 16 | 85 | 0.28 |
| 1 | 1.5 | 26 | 23 | 21 | 23 | 10.5 | 18 | 96.5 | 0.41 |
| 1.5 | 2 | 29 | 25.5 | 25.5 | 29 | 12.5 | 22 | 108 | 0.67 |
| 2 | 3 | 31 | 28 | 29 | 32 | 14.5 | 24 | 123 | 0.95 |
| 3 | 4.5 | 38 | 34.5 | 36.5 | 40 | 18 | 33 | 150 | 1.99 |
| 5 | 7 | 46.5 | 41 | 46 | 51 | 23 | 42 | 190 | 3.81 |
| 7.5 | 11 | 56.5 | 53 | 57 | 62 | 28 | 48 | 232.5 | 6.85 |
| 10 | 15 | 63 | 58 | 66 | 72 | 32.5 | 56 | 259.5 | 9.82 |
