Details:

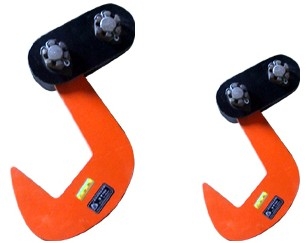

◇Application: Horizontal lifting of steel plate .
◇Material: Low carbon steel alloy.
◇Loading range: 0 to 5 ton.
◇Two pieces of clamps are used for the testing,but 4 pieces are recommended for lifting operation. balance beam is needed, otherwise, It will cause automatic unloading.
◇The loaded object shall not touch anything when operating, over loading is prohibited.
◇Testing load is 2 times of working load.
◇The rated loading is the maximum weight as the angle is 60 degree and a pair of clamps are recommended.
◇Durable enduring, easy operation.
Art.No. | WLL/(t) | Steel plate Thickness(mm) |
PDQ1 | 1 | 0-50 |
PDQ2 | 2 | 0-60 |
PDQ3.2 | 3 | 0-90 |
PDQ5 | 5 | 0-120 |
PDQ8 | 8 | 0-130 |
