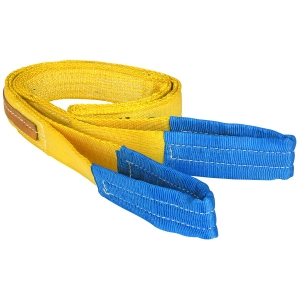

Each sling is packed with shrink film and two white packing strips.
| Item |
Colourcoded according to EN 1492-1 |
Working Load Limit with 1 webbing sling | ||||
|
Straight lift |
Choked lift |
β | ||||
| 0-7 | 7-45 | 45-60 | ||||
| 1.0 | 0.8 | 2.0 | 1.4 | 1.0 | ||
| WSDP-201 | WLL 1T | 1.000 | 800 | 2.000 | 1.400 | 1.000 |
| WSDP-202 | WLL 2T | 2.000 | 1.600 | 4.000 | 2.800 | 2.000 |
| WSDP-203 | WLL 3T | 3.000 | 2.400 | 6.000 | 4.200 | 3.000 |
| WSDP-204 | WLL 4T | 4.000 | 3.200 | 8.000 | 5.600 | 4.000 |
| WSDP-205 | WLL 5T | 5.000 | 4.000 | 10.000 | 7.000 | 5.000 |
| WSDP-206 | WLL 6T | 6, 000 | 4, 800 | 12, 000 | 8, 400 | 6, 000 |
| WSDP-208 | WLL8T | 8, 000 | 6, 400 | 16, 000 | 11, 200 | 8, 000 |
| WSDP-210 | WLL10T | 10, 000 | 8, 000 | 20, 000 | 14, 000 | 10, 000 |
| WSDP-212 | WLL 12T | 12, 000 | 9, 600 | 24, 000 | 16, 800 | 12, 000 |
