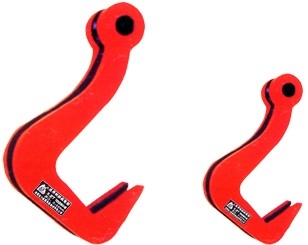

Double-ply plate lifting clamps QS type
Description

Details:

Application: Horizontal lifting of steel plate .
Material: Low carbon steel alloy.
Loading range: 0 to 5 ton.
Two pieces of clamps are used for the testingbut 4 pieces are recommended for lifting operation. balance beam is needed, otherwise, It will cause automatic unloading.
The loaded object shall not touch anything when operating, over loading is prohibited.
Testing load is 2 times of working load.
The rated loading is the maximum weight as the angle is 60 degree and a pair of clamps are recommended.
Durable enduring, easy operation.

Art.No. WLL/(t) Steel plate Thickness(mm)
PDQ1 1 0-50
PDQ2 2 0-60
PDQ3.2 3 0-90
PDQ5 5 0-120
PDQ8 8 0-130
