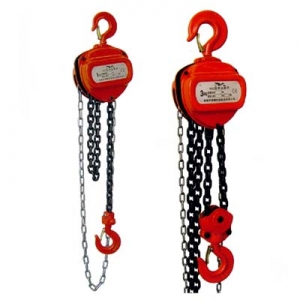

HS-C Chain Hoist Introduction:
Model HS-C series chain block is improved on the basis of HSZ series, which is designed on the most advanced principles of Japanese C type chain block moreover; some inner parts have been improved. Besides the traditional characteristics of HSZ series chain block,it needs less hand pullforce and it is more attractive and beautiful in appearance,which is triangle
HS-C Chain Hoist Parameters:
| Model | HS-C-1/2 | HS-C-1 | HS-C-1.5 | HS-C-2 | HS-C-3 | HS-C-5 | HS-C-10 |
| Capacity(t) | 0.5 | 1 | 1.5 | 2 | 3 | 5 | 10 |
|
Standard lifting height (m) |
2.5 | 2.5 | 2.5 | 2.5 | 3 | 3 | 3 |
| Test load(t) | 0.75 | 1.5 | 2.25 | 3 | 4.5 | 7.5 | 12.5 |
|
Chainpull to lift full load (N) |
221 | 304 | 346 | 314 | 343 | 383 | 392 |
|
No.of load chain fall lines |
221 | 1 | 1 | 2 | 2 | 2 | 4 |
|
Diameter of load chain (mm) |
6 | 6 | 8 | 6 | 8 | 10 | 10 |
|
Net weight (kg) |
8 | 10 | 16 | 14 | 24 | 36 | 68 |
|
Gross weight (kg) |
10 | 13 | 12 | 17 | 28 | 45 | 83 |
|
Packing masurement (L*W*H ) (cm) |
28*21*17 | 30*24*18 | 34*29*20 | 33*25*19 | 38*30*20 | 45*35*24 | 62*50*28 |
| Extra weight meter of extra lift(kg) | 1.7 | 1.7 | 2.3 | 2.5 | 3.7 | 5.3 | 9.7 |
