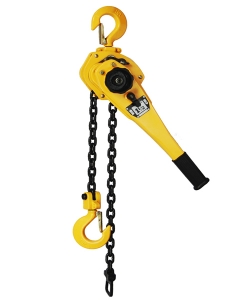

HS-VT Level Block
Description
HS-VT Level Block Introduction:

HS-VT series lever block advantages:
High ablility, high security, high agility. Can greatly reduced work intension.
Good gear, international standard gear steel. More wearable and steadier than common gears. More laborsaving.
The chain adopts high strong chain and high precision welding technology.
The hooks made of high-class alloy steel.

HS-VT Level Block Paraments

Model HSVT-0.75 HSVT-1.5 HSVT-3.2 HSVT-6
Capacity 0.75T 1.5T 3.2T 6T
Standard lifting height 1.5M 1.5M 1.5M 1.5M
Test load 1.1T 2.2T 4.41T 7.35T
Force for full load 196N 206N 324N 343N
No. of load chain fall lines 1 1 1 1
Diameter of load chain 6MM 7MM 10MM 10MM
Net weight 7KG 11KG 20KG 30KG
Length of handle 290MM 410MM 410MM 410MM
Packing measurement
(LXWXH)  mm		 382*167*162 517*197*177 577*247*217 577*247*217
Extra weight meter of extra lift 0.8kg 1.10kg 2.2kg 4.4kg
