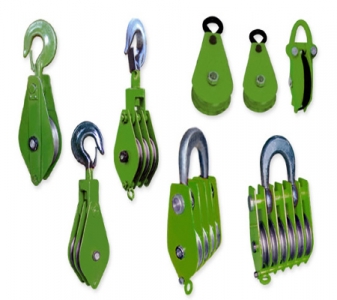

Pulley Introduction:
Pulley is an important lifting tool with simple strusture and use conveniently.It can change direction of pulley,steel rope and high weight cargoes,especially series of pulley combined with windlass,mast and other lifting machinery. It widely used in installation in construction.Its standard from 0.03-320T and wheels not exceed ten.Our lifting tools include hooks,chain rings,lifting ring,handing beam.You can choose it according to your need.

Pulley Parameters:

Descciption	Model	Standard Capacity	Testing Load	Wire Rope Dia（mm）		Sheave Dia（mm）	Weight（kg）
				Fat	Max
Sing Wheel Open Hook Pulley	HQG(L)l-0.5	0.5	8	6.2	7.7	71	1.75
	HQG(L)l-1	1	16	7.7	11	85	3.25
	HQG(L)l-2	2	32	11	14	85	3.25
	HQG(L)l-3.2	3.2	51.2	12.5	15.5	132	10.5
	HQG(L)l-5	5	80	15.5	18.5	16.	19
	HQG(L)l-8	8	80	15.5	18.5	160	19
	HQG(L)l-10	10	160	23	24.5	240	50.5
	HQG(L)l-16	16	224	28	31	315	113.5
	HQG(L)l-20	20	280	31	35	355	162.2
Double Wheel Hook Pulley	HQG(L)2-1	1	16	6.2	7.7	71	3.15
	HQG(L)2-2	2	32	7.7	11	85	6
	HQG(L)2-3.2	3.2	51.2	11	14	112	11
	HQG(L)2-5	5	80	12.5	15.5	132	20
	HQG(L)2-8	8	128	15.5	18.5	160	35
	HQG(L)2-10	10	160	17	20	180	47
	HQG(L)2-16	16	224	23	24.5	240	75.2
	HQG(L)2-20	20	280	26	28	280	138.9
	HQG(L)2-32	32	448	31	35	355	237.5
There Wheel Hook Pulley	HQG(L)3-3.2	3.2	51.2	7.7	11	85	8.2
	HQG(L)3-5	5	80	11	14	112	16.83
	HQG(L)3-8	8	128	12.85	15.5	132	18
	HQG(L)3-10	10	160	15.5	18.5	160	47
	HQG(L)3-16	16	224	17	20	190	49.79
	HQG(L)3-20	20	280	20	23	210	69.59
	HQG(L)3-32	32	448	26	28	280	187.8
	HQG(L)3-50	50	700	31	35	355	360
Four Wheel Stationary Ring Pulley	HQD4-8	8	128	11	14	112	29.36
	HQD4-10	10	160	12.5	15.5	132	41.46
	HQD4-16	16	224	15.5	18.5	160	76.23
	HQD4-20	20	280	17	20	180	84
	HQD4-32	32	448	23	24.5	240	196.23
	HQD4-50	50	700	28	31	315	347.9
Five Wheel Stationary Ring Pulley	HQD5-20	20	280	15.5	18.5	160	91.5
	HQD5-32	32	448	20	23	280	303
	HQD5-50	50	700	23	24.5	240	277.5
	HQD5-80	80	1040	31	35	355	516.5
Six Wheel Stationary Ring Pulley	HQD6-32	32	448	17	20	180	122.73
	HQD6-50	50	700	23	24.5	240	277.5
	HQD6-80	80	1040	28	31	315	507.5
	HQD6-100	100	1300	31	35	355	1552
Eight Wheel Stationary Ring Pulley	HQD8-80	80	1040	26	28	280	530
	HQD8-100	100	1300	28	31	315	653.5
	HQD8-160	160	2080	31	35	355	1137.4
	HQD8-200	200	2500	34	38	400	1360
Ten Wheel Stationary Ring Pulley	HQD10-200	200	2500	31	35	355	1552
	HQD10-250	250	3125	34	38	400	2037
	HQD10-320	320	4000	40	43	450	2974
