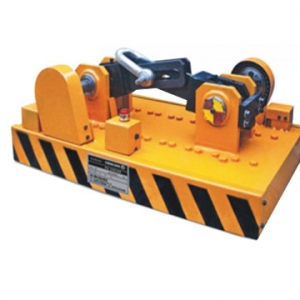

JG2 Automatic Permanent Magnetic Lifter
The Main Structure
1. Widely used on shipbulding,engineering machinery,mould producing industry
2. Automatic pull or push,no one operation can berealized.
3. Do without electricity, can be replaced electromagnet,more safety while working.
4. Using high-performance permanent magnetic materials,
5. Strong in magnetic suction
6. Patent cicuit design,Remanence almost zero.
7. Single using can also be a number of combinations.
Parameters:
| Model | Rated Lkifting Capacty （KG） | Shape Size （mm） | Test Max Pull Off Force (kg) | Weight（kg） | |||||||
| A | B | C | D | E | F | G | H | ||||
| JG2-1B | 1000 | 685 | 238 | 770 | 410 | 28 | 48 | 102 | 415 | 4000 | 200 |
| JG2-1H | 1000 | 596 | 285 | 685 | 450 | 28 | 48 | 104 | 410 | 4000 | 175 |
| JG2-1.5 | 1500 | 760 | 285 | 845 | 450 | 28 | 48 | 104 | 440 | 5500 | 245 |
| JG2-2B | 2000 | 760 | 328 | 845 | 500 | 28 | 48 | 112 | 440 | 7000 | 285 |
| JG2-2H | 2000 | 675 | 360 | 758 | 540 | 28 | 48 | 112 | 420 | 7000 | 265 |
| JG2-3B | 3000 | 862 | 406 | 948 | 585 | 36 | 58 | 112 | 480 | 10500 | 380 |
| JG2-3H | 3000 | 786 | 358 | 872 | 545 | 36 | 58 | 124 | 480 | 10500 | 360 |
| JG2-5B | 5000 | 1016 | 424 | 1100 | 610 | 38 | 62 | 124 | 580 | 1500 | 490 |
| JG2-5H | 5000 | Developping | |||||||||
| JG2-10 | 10000 | ||||||||||
| JG2-20 | 20000 | ||||||||||
