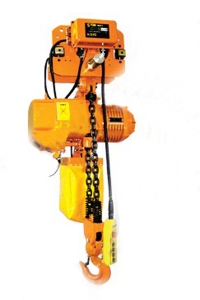

HSY-electric chain hoist Introduction：
1) Compact and high efficient motor, low power consumption
2) Hoist body pressing steel structure, high strength body, light and compact
3) Most tensile safety hooks: both the top and bottom hooks are made of high tensile alloy steel with special treatment; it guarantees the hook will not break and deform gradually under a sudden extra-load
4) Compact and beauty chain container: high strength plastic container has outstanding durability
5) Limit switch devices fitted at both top and bottom ends: switch off power automatically to prevent load chain from running out

HSY-electric chain hoist Parameters：

Model HSY	Capacity  TON	Lifting Height M	Lifting Speed M/MIN	Lifting motor					Drive motor						I beam
				Power KW	Rotational  Speed  R/MIN	Phase	Voltage V	Frequency HZ/S	Power KW	Rotational  Speed  R/MIN	Running  speed M/MIN	Phase	Voltage V	Frequency HZ/S
01-01	1	3/9	6.8	1.5	1440	3	380/220	50/60	0.4	1440	11/21	3	380/220	50/60	82-153
02-02	2	3/9	3.4	1.5	1440	3	380/220	50/60	0.4	1440	11/21	3	380/220	50/60	82-153
2.5-01	2.5	3/9	6.8	3.0	1440	3	380/220	50/60	0.75	1440	11/21	3	380/220	50/60	82-153
03-02	3	3/9	5.8	3.0	1440	3	380/220	50/60	0.75	1440	11/21	3	380/220	50/60	82-153
05-02	5	3/9	2.8	3.0	1440	3	380/220	50/60	0.75	1440	11/21	3	380/220	50/60	110-178
